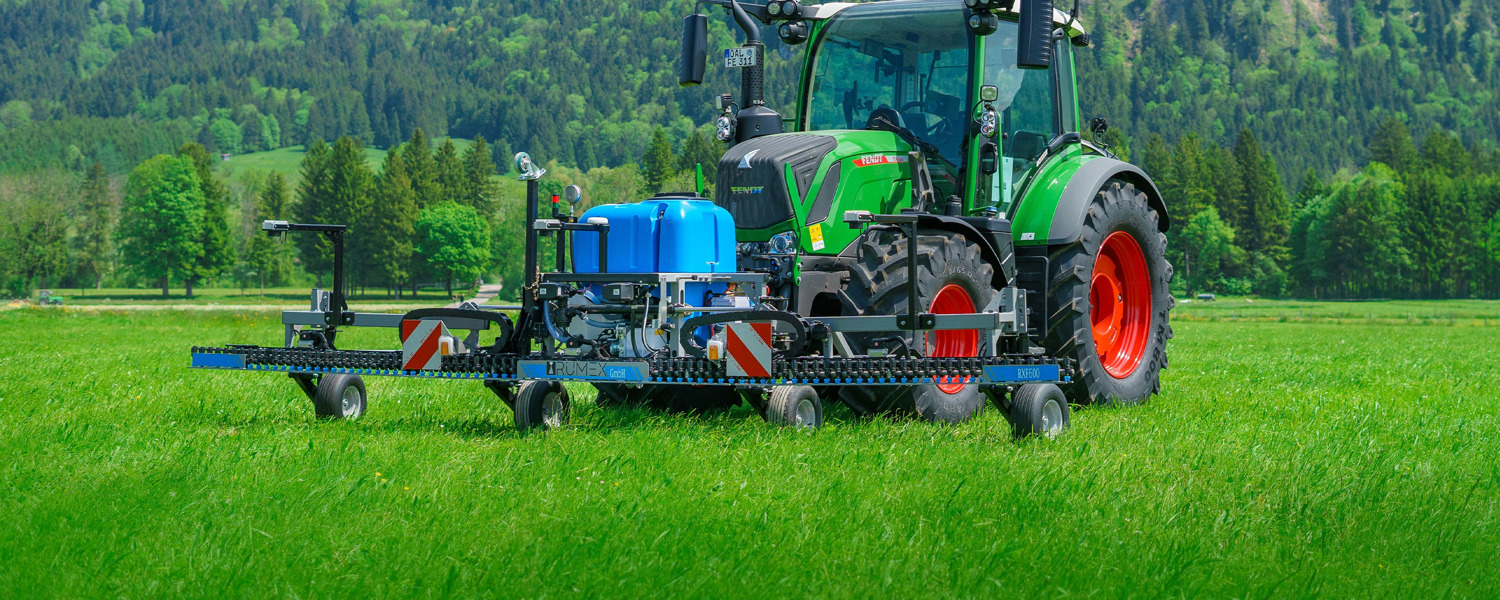

RXF600 SPOT SPRAYER

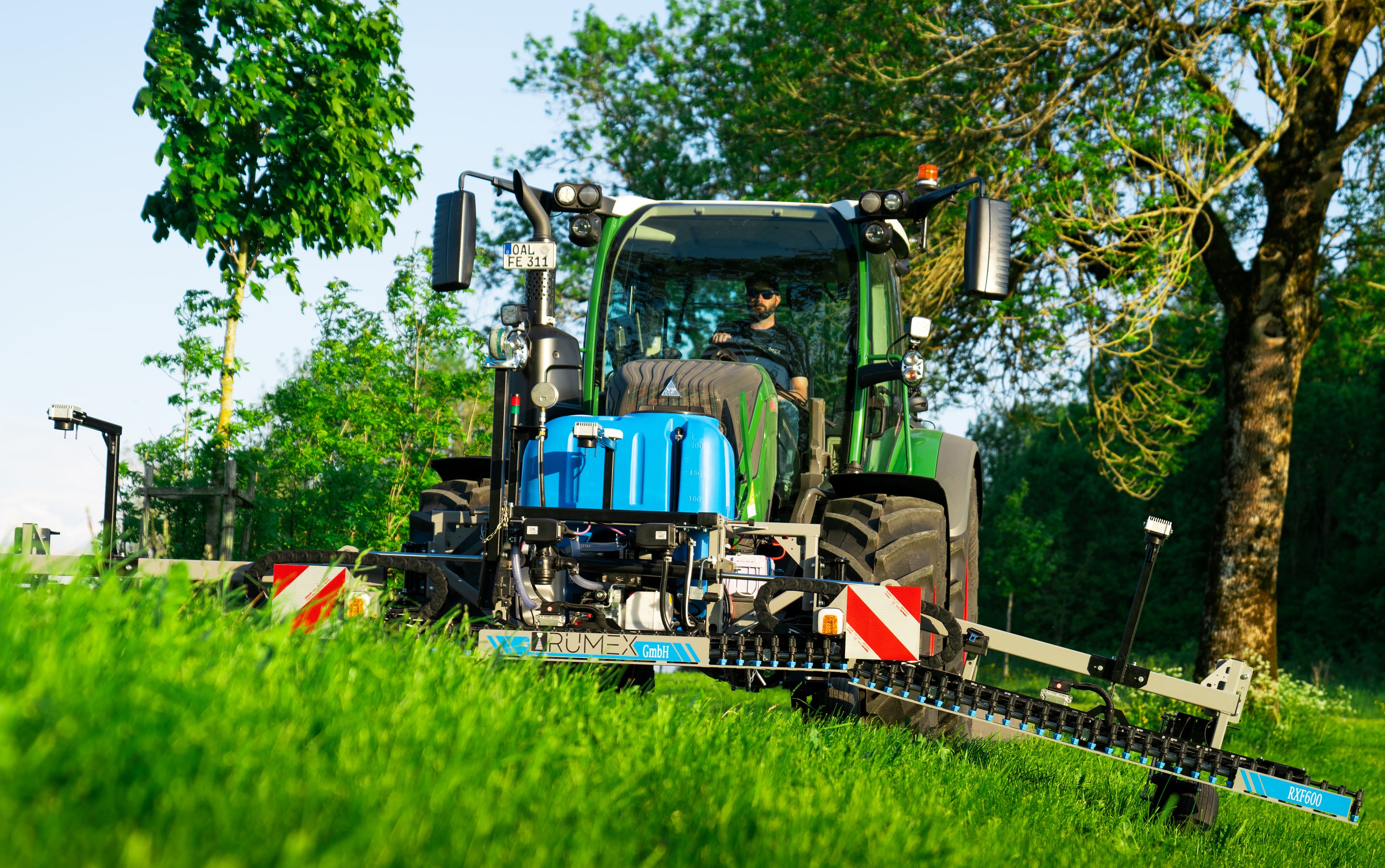

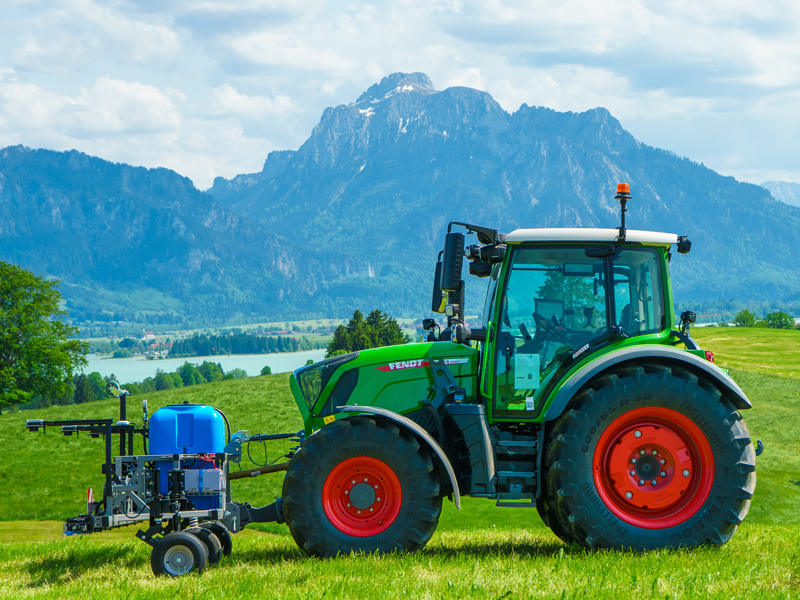

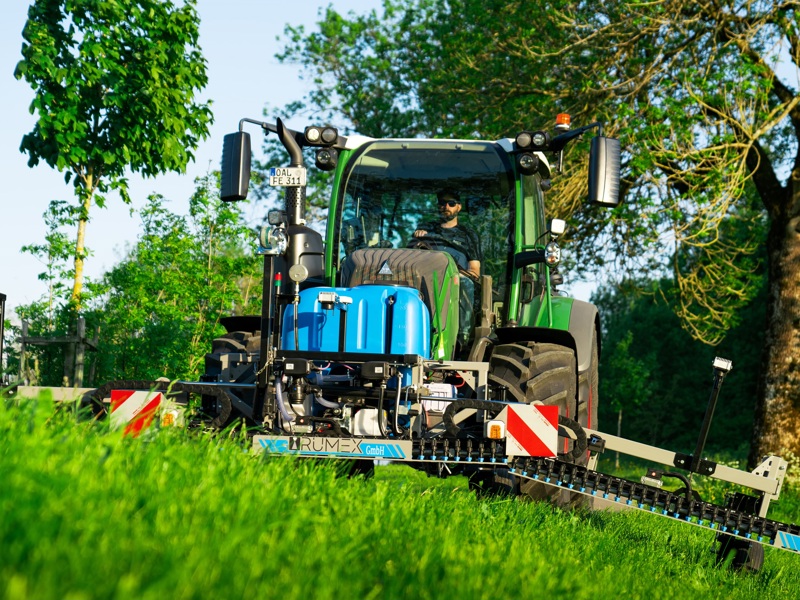

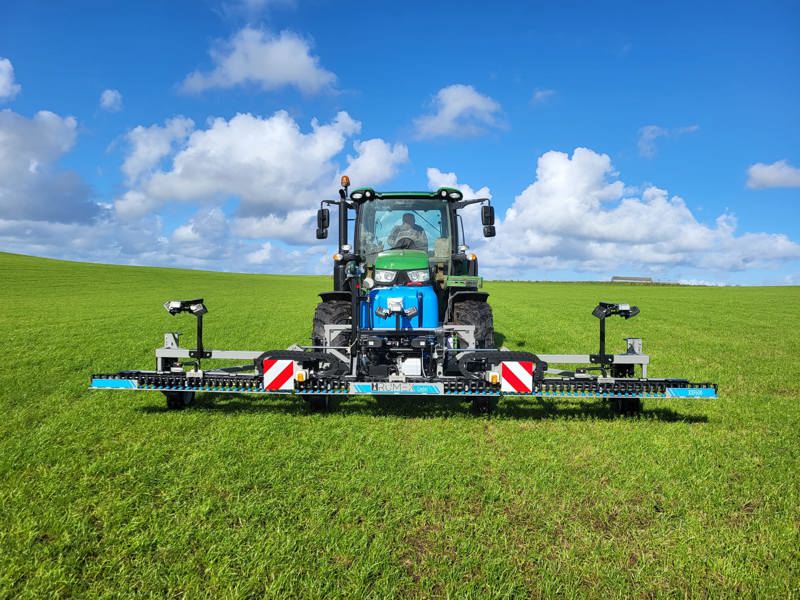

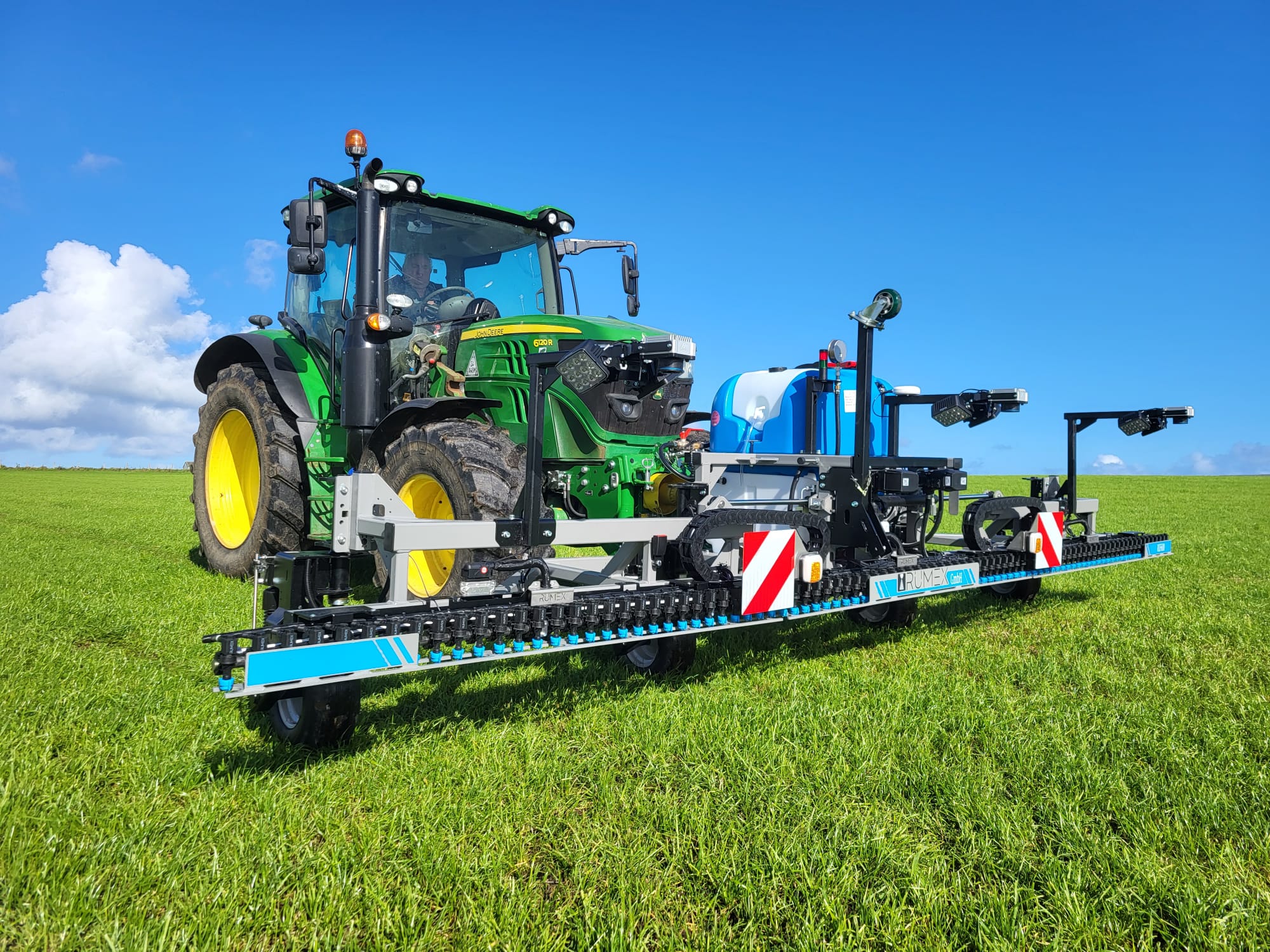

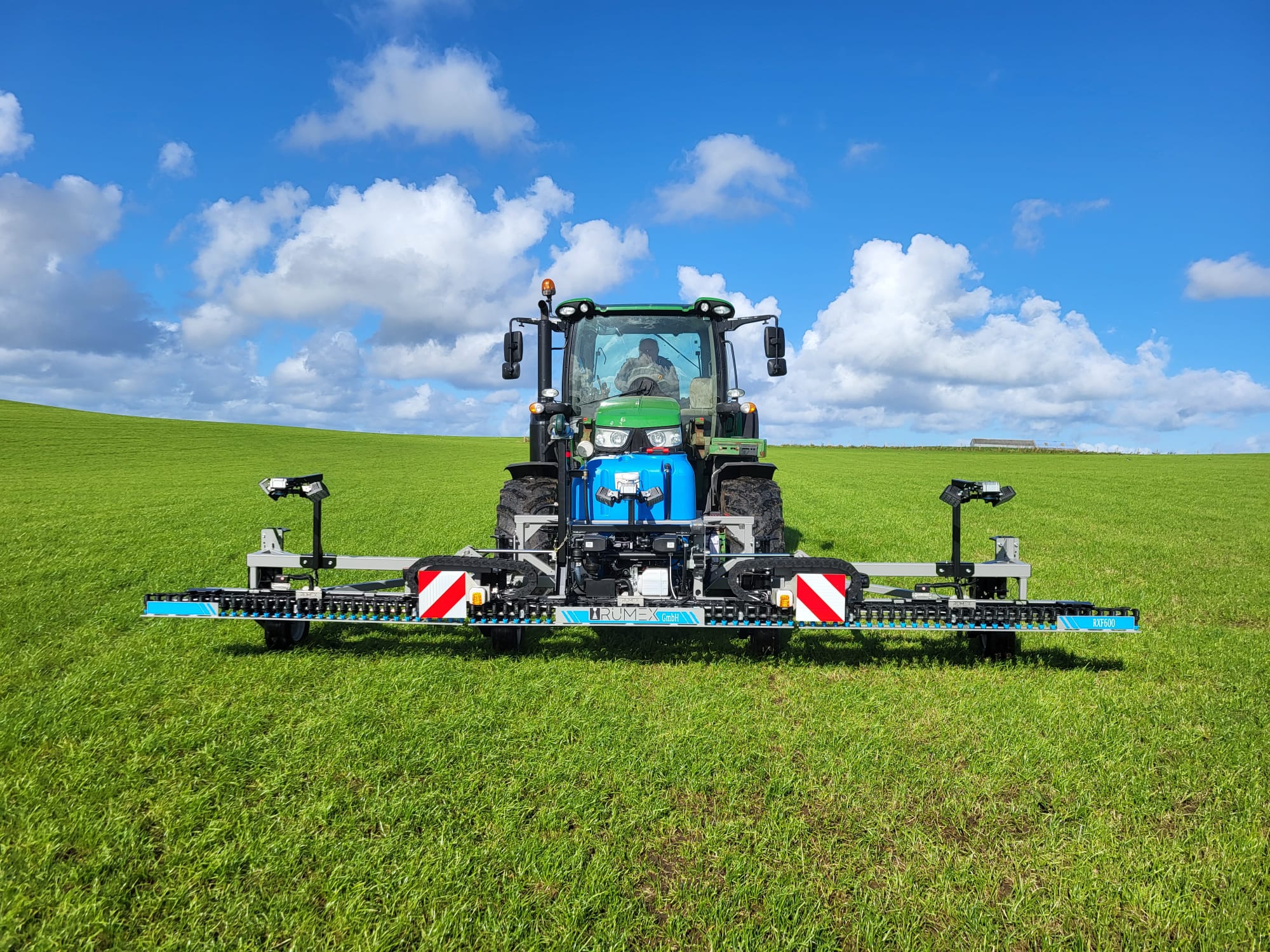

The RXF600 is a mounted sprayer attached to the front hitch and PTO of the tractor. Three horizontally aligned cameras record the plant population on the grassland while driving. This data is processed by intelligent computing algorithms in order to clearly recognise and target dock plants.

ENQUIRE

FEATURES & BENEFITS

6m working width
200 L spray tank + cleaning tank
3 cameras for weed detection at variable speeds and during cornering
Up to 12 km/h operating speed
90 individually controllable flat spray nozzles
Spray width per nozzle: 70 mm

User-friendly control terminal
Compact design
Optimisation for the respective crop
Hydraulic folding and unfolding
View of the work process during operation
Precise ground adaptation and consistent spray height through movable spray booms

Compact design

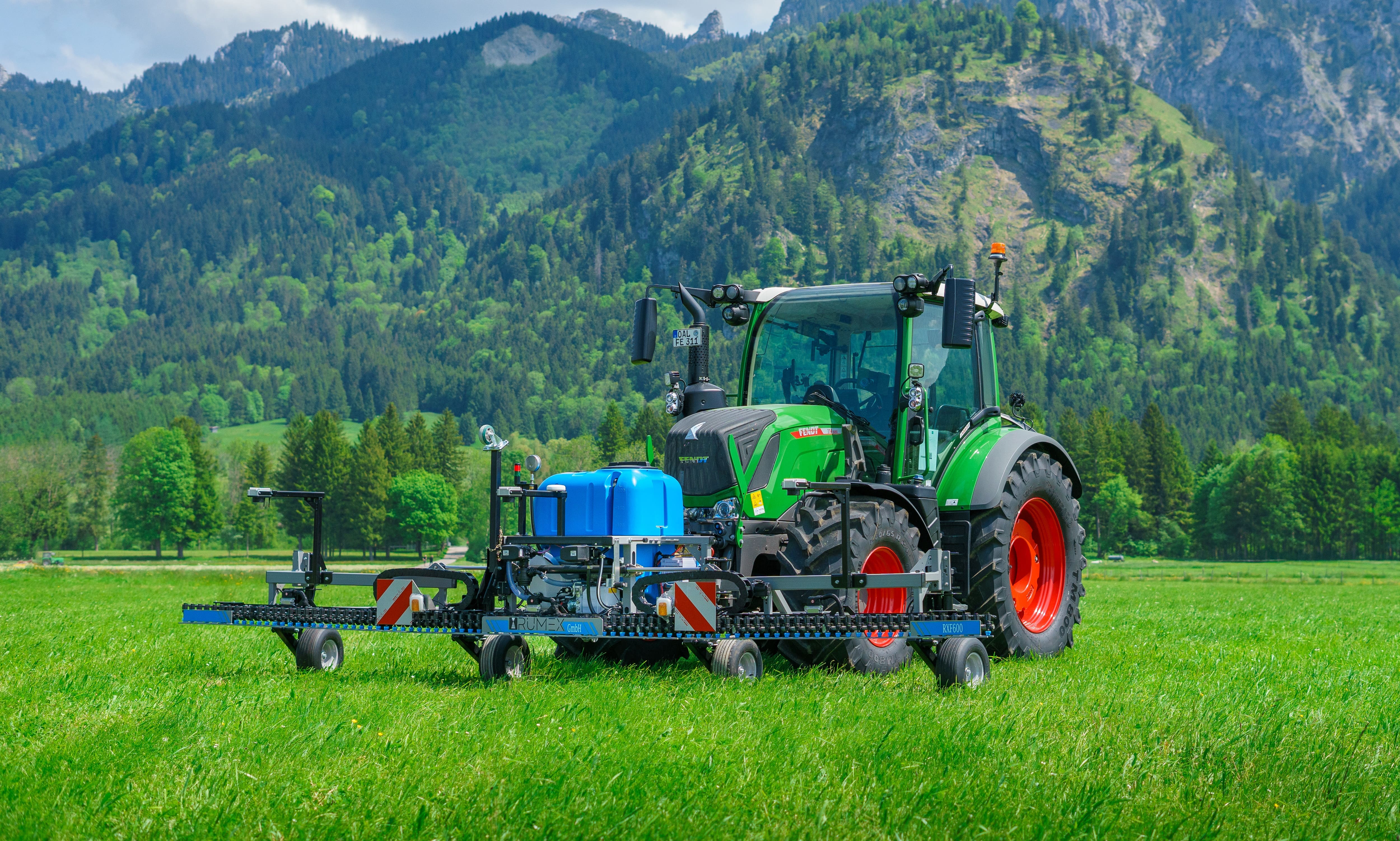

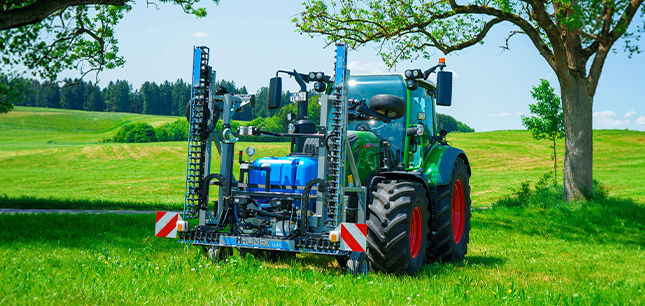

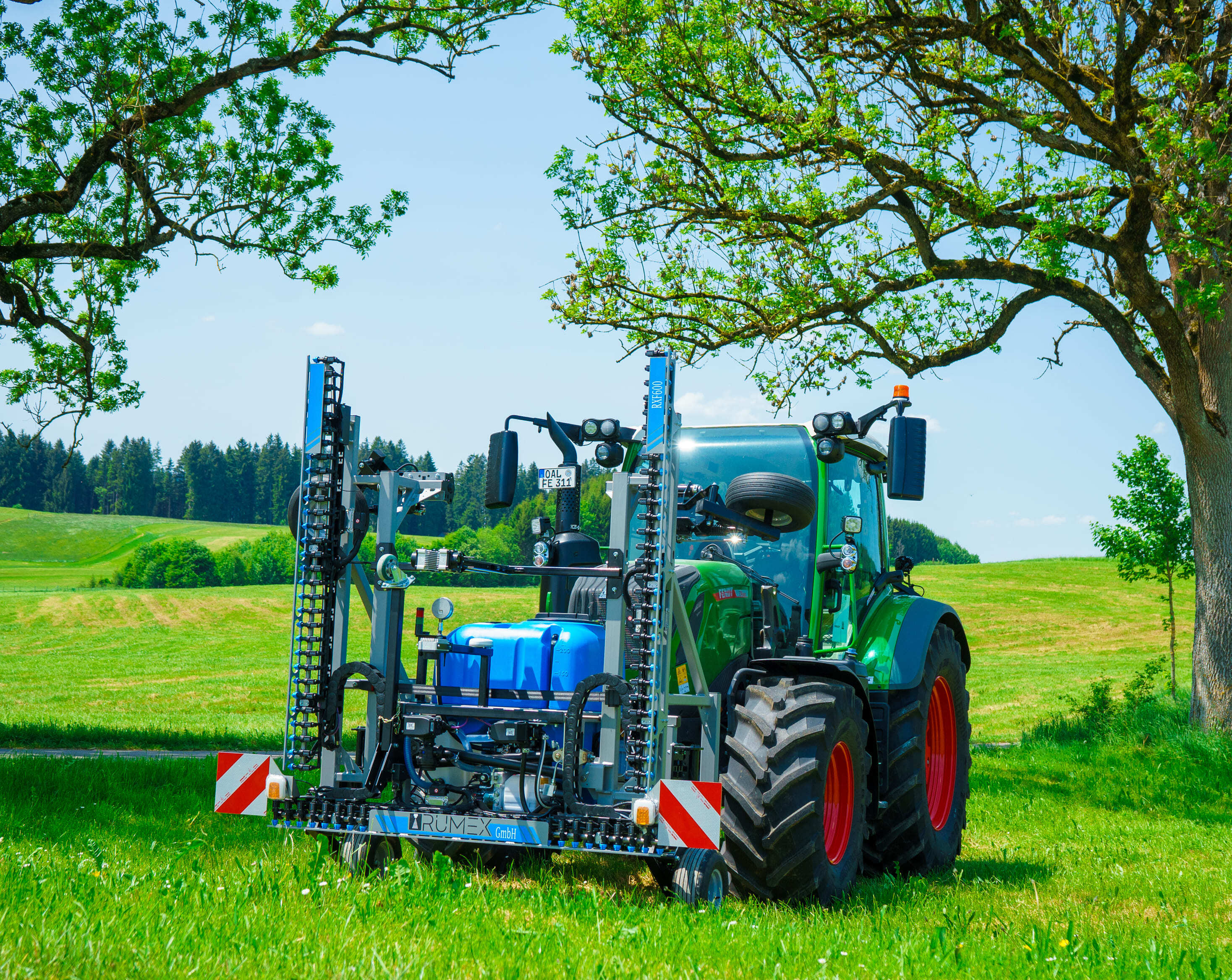

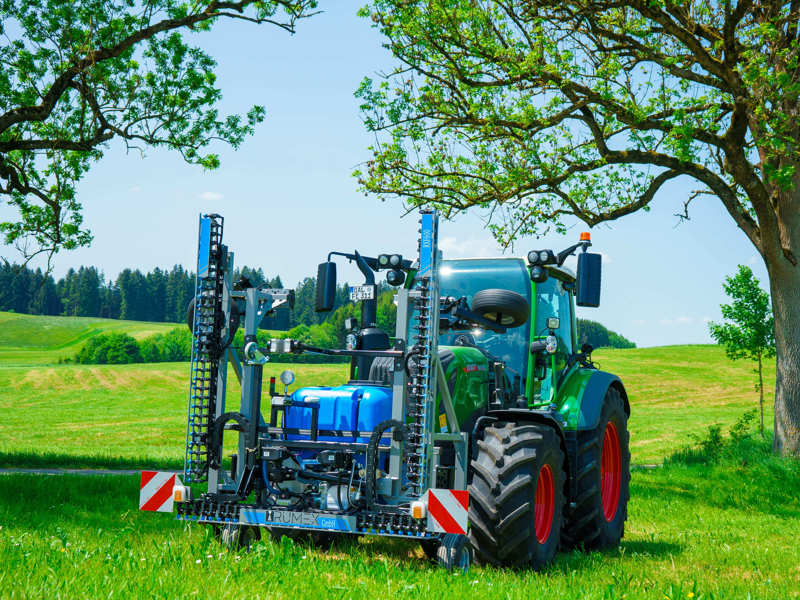

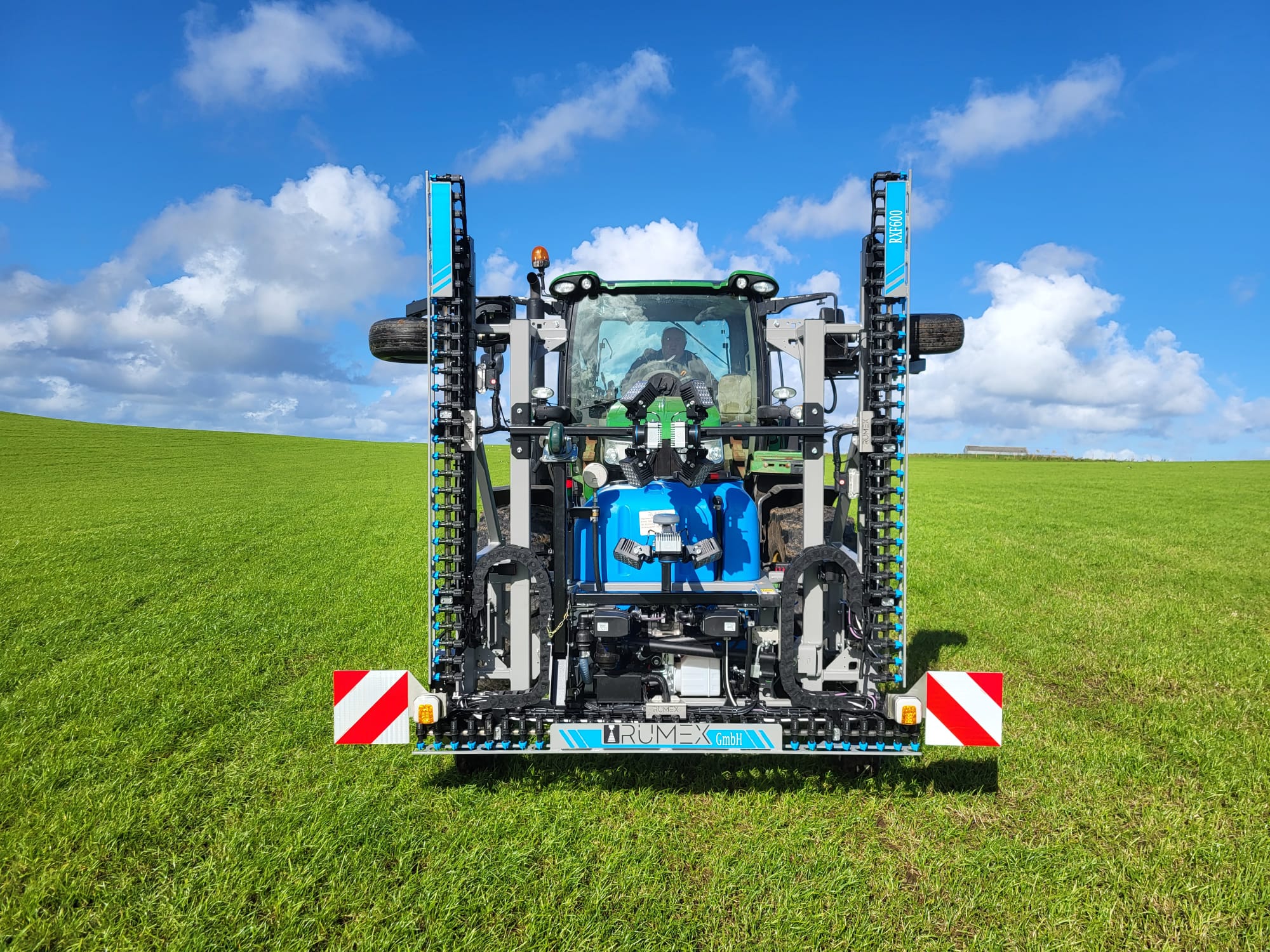

The hydraulic folding of the spray booms transforms the crop protection sprayer into a compact unit measuring 1.60 m x 3.00 m x 3.65 m (L x W x H). With adjusted gauge wheels and an unfolded support wheel, the folded sprayer can be easily maneuvered manually.

High-end technology

To process our complex neural networks in real time, we have developed the most powerful hardware by far for our sprayer. With 100 TFLOPS (trillion operations per second), our camera delivers performance on an entirely new level while being extremely robust and resistant to external interference.

SPOT SPRAYER WITH ARTIFICIAL INTELLIGENCE

Artificial intelligence (AI) enables machines to learn from experience, adapt to new incoming information, and perform tasks that require human-like cognitive abilities.

CONTROLS

If a plant is detected by the image recognition system during operation, the required spray nozzles open as the plant reaches the spray boom to completely cover the dock plant with crop protection chemicals. This process works seamlessly during cornering and at varying speeds. With individual nozzle control, the minimum spray width is 70 mm, allowing even the smallest leaves to be precisely treated.

The user interface allows detailed display of driving and spraying data. It also enables the adjustment of spray parameters and access to maintenance functions. Despite its advanced capabilities, operating the crop protection sprayer is very straightforward. Once the PTO shaft is engaged and the machine is positioned on the ground, the image recognition system starts automatically. Whether the image recognition is active is indicated by a clearly visible indicator lamp which can be easily seen from the tractor cab.

Plant Detection

User Interface

Ground adaptation

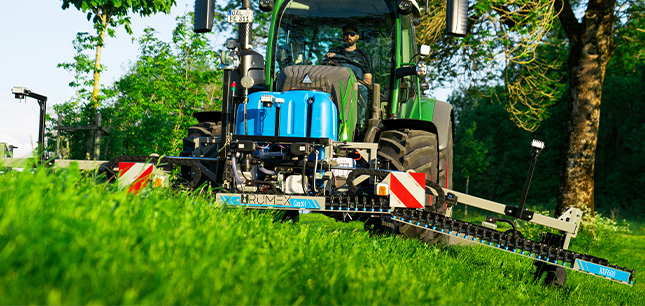

To achieve this precise spraying result, the spray booms are mounted in a swinging configuration and equipped with lateral gauge wheels. These ensure that the distance between the nozzles and the target object remains constant, especially on uneven terrain. Additionally, the track of the outer gauge wheels identifies the treated area.

Requirements for the tractor

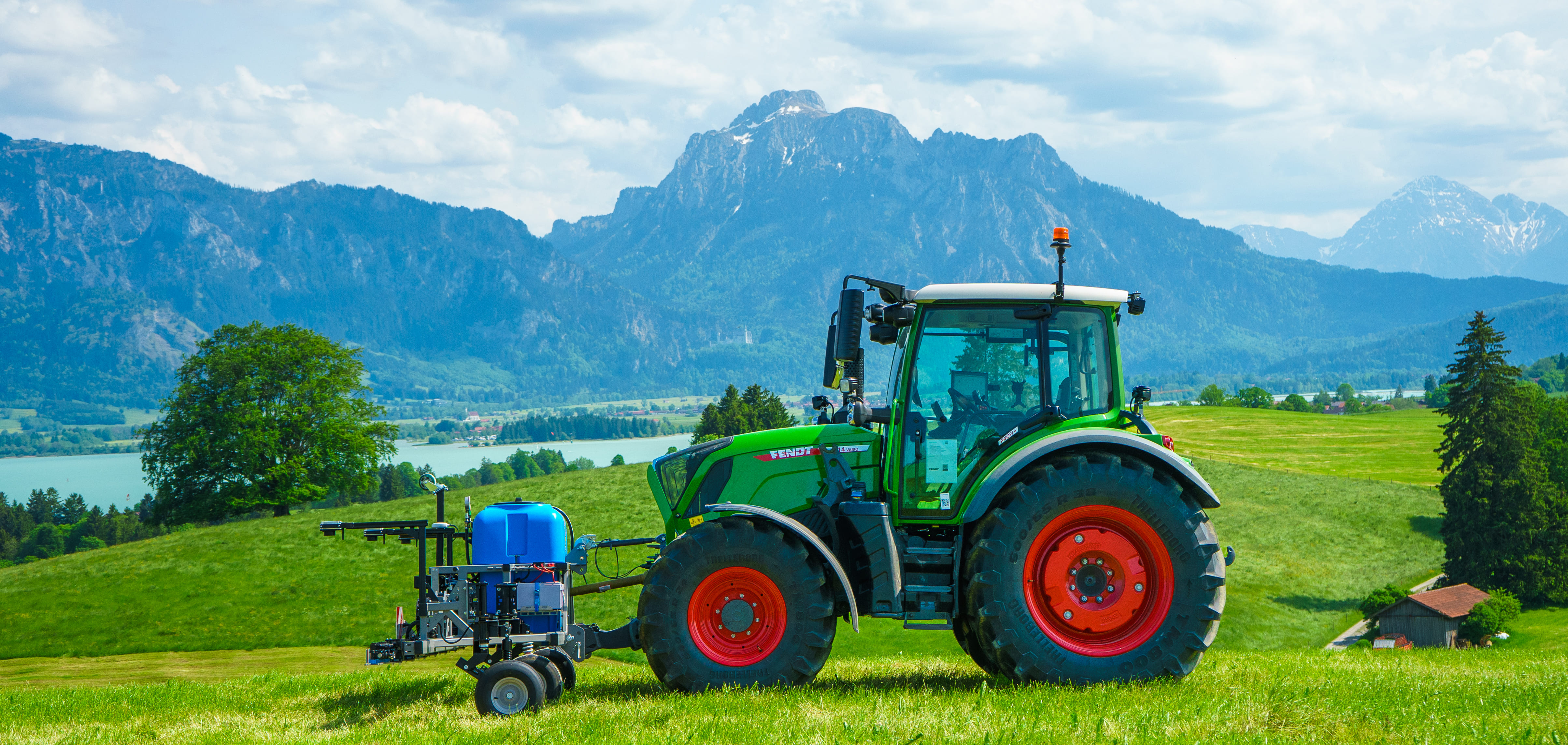

An integrated power unit reduces the requirements for the tractor to a front hitch and a front PTO shaft. Tractors from the lower power segment can be used to operate the crop protection sprayer.

RUMEX SPRAYERS MODELS

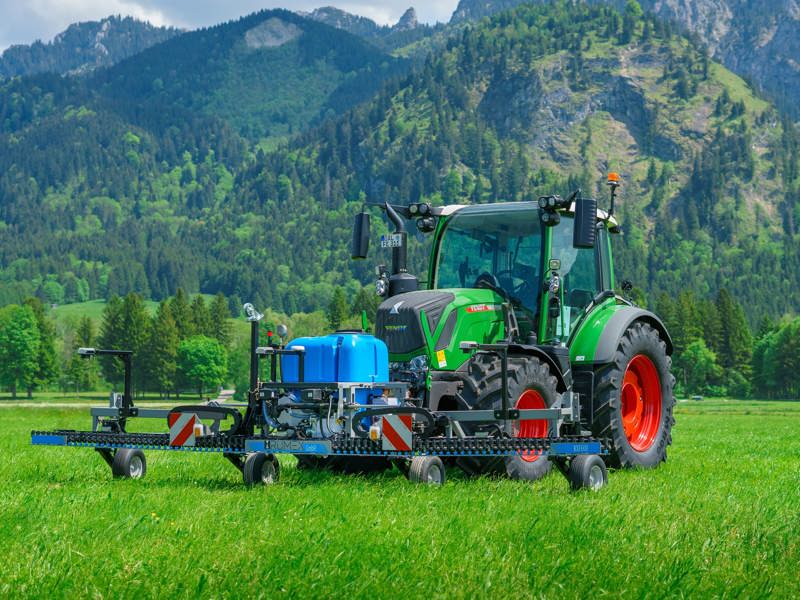

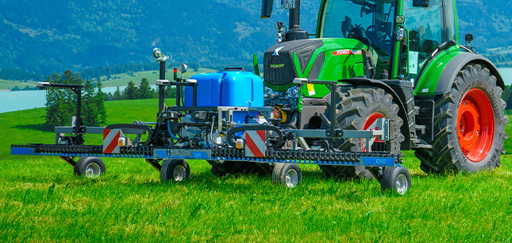

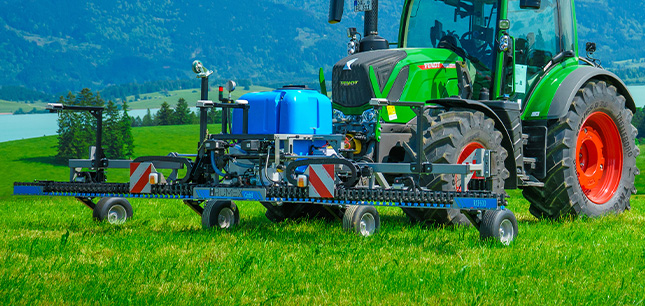

RXF600 SPRAYER

The RXF600 is a mounted sprayer designed to be attached to the tractor's front hitch. Six horizontally oriented cameras capture the crop stand during operation. This data is processed using intelligent algorithms to reliably identify weeds.

6m working width
200 L spray tank + cleaning tank
3 cameras for weed detection at variable speeds and during cornering
Up to 12 km/h operating speed
90 individually controllable flat-fan nozzles
Spray width per nozzle: 70 mm
Precise ground adaptation and consistent spray height through movable spray booms
User-friendly control terminal
Compact design
Optimisation for the respective crop
Hydraulic folding and unfolding
Uninhibited view of the work process during operation

Technical information

Model	Working Width	Spray Tank	Nozzle Width	Speed	Min HP	Weight
RXF600	6m	200L	70mm	up to 12kph	50hp	1000kg
