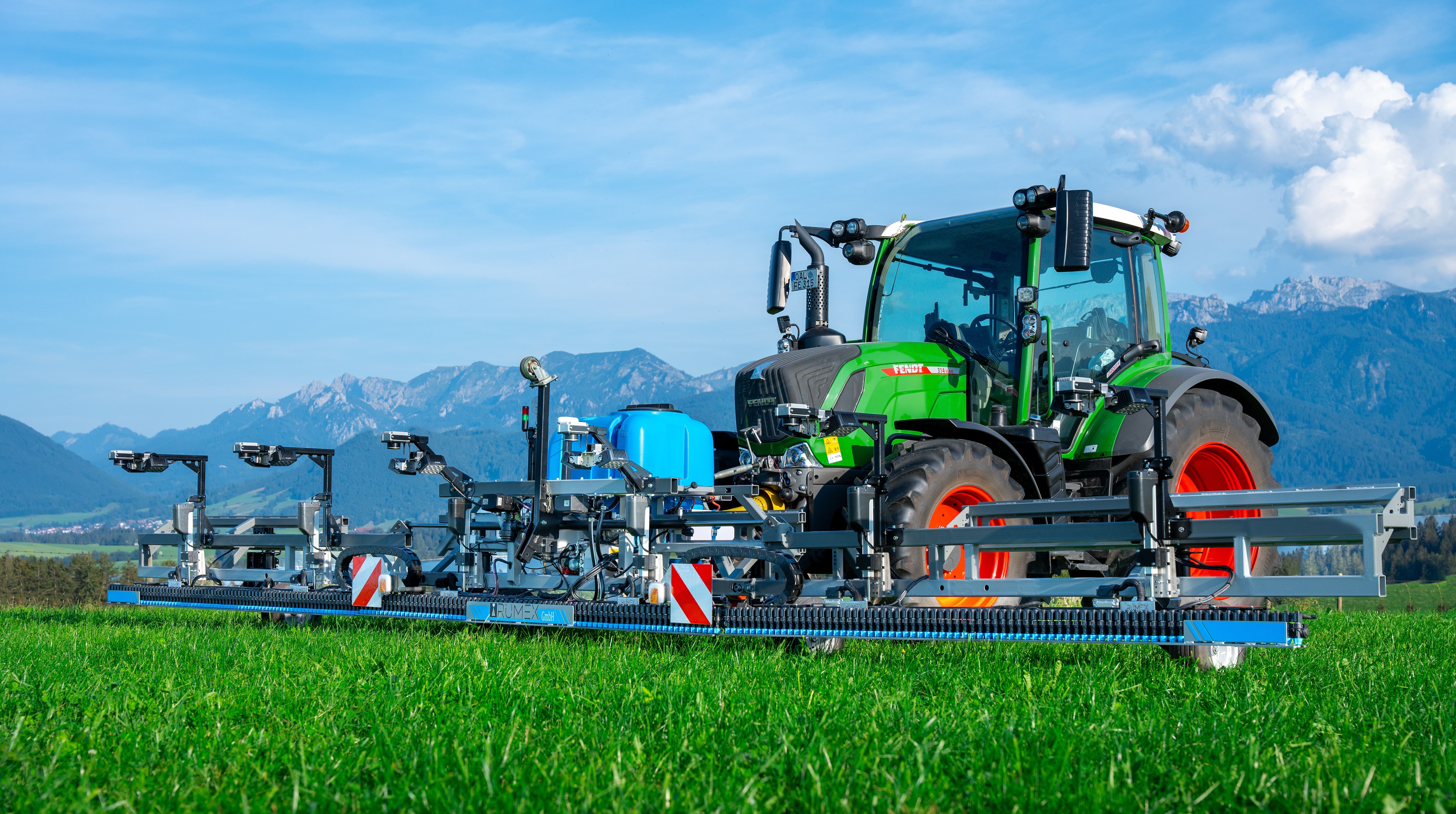

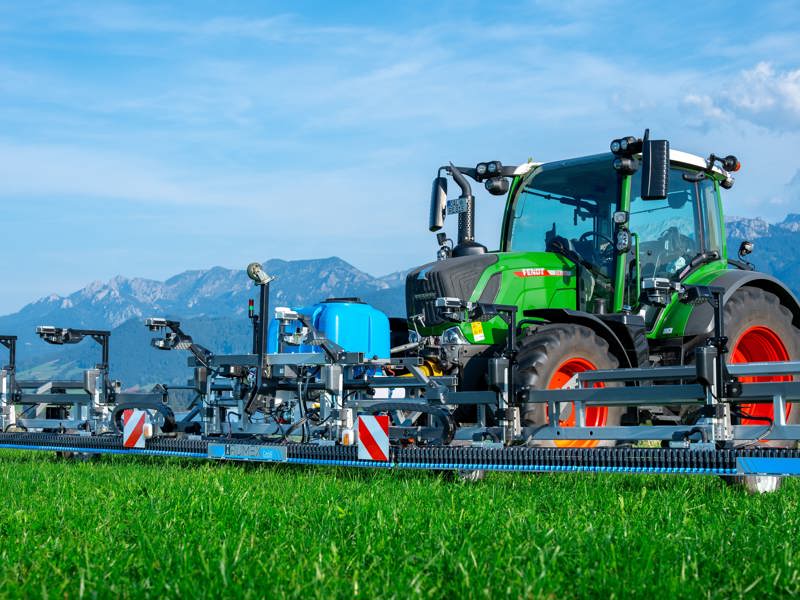

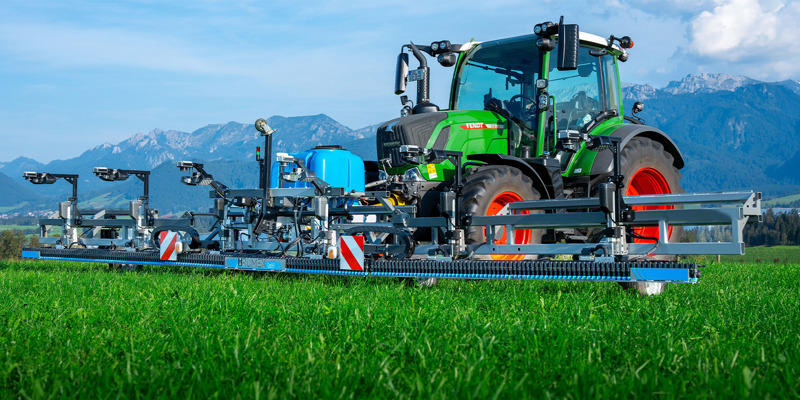

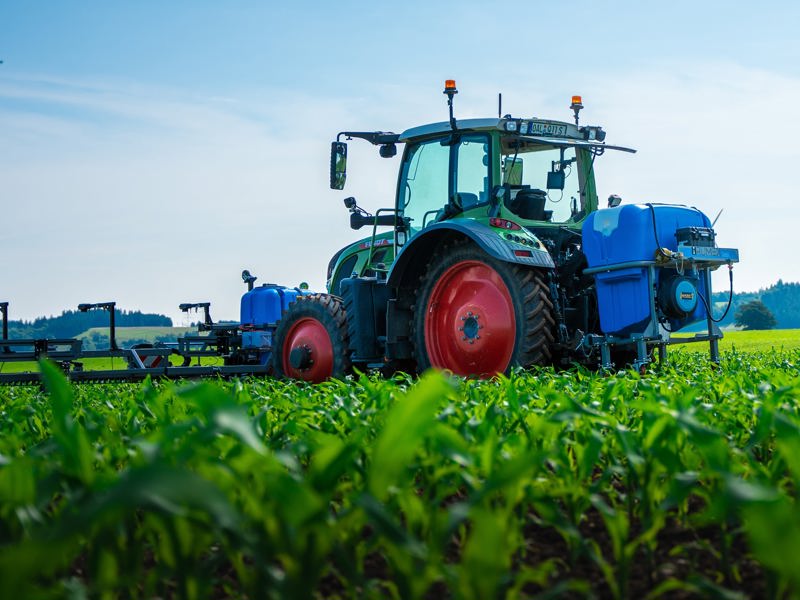

The RXF900 is a mounted sprayer designed to be attached to the tractor's front hitch. Six horizontally oriented cameras capture the crop stand during operation. This data is processed using intelligent algorithms to reliably identify weeds.
FEATURES & BENEFITS
- 6 cameras for crop monitoring
- 9 m working width
- 200 L spray tank + cleaning tank
- Up to 12 km/h operating speed
- 222 individually controllable flat spray nozzles
- Spray width per nozzle: 40mm
- Precise ground adaptation and consistent spray height through movable spray booms
- Electrohydraulic folding and unfolding
- Adjustable chassis for various bed widths from 1.5 to 3.0 m
- Electrically height-adjustable spray booms
- Lighting with 43,200 lumens per unit
- Control terminal for capturing and adjusting driving and spraying data, as well as setting spray parameters

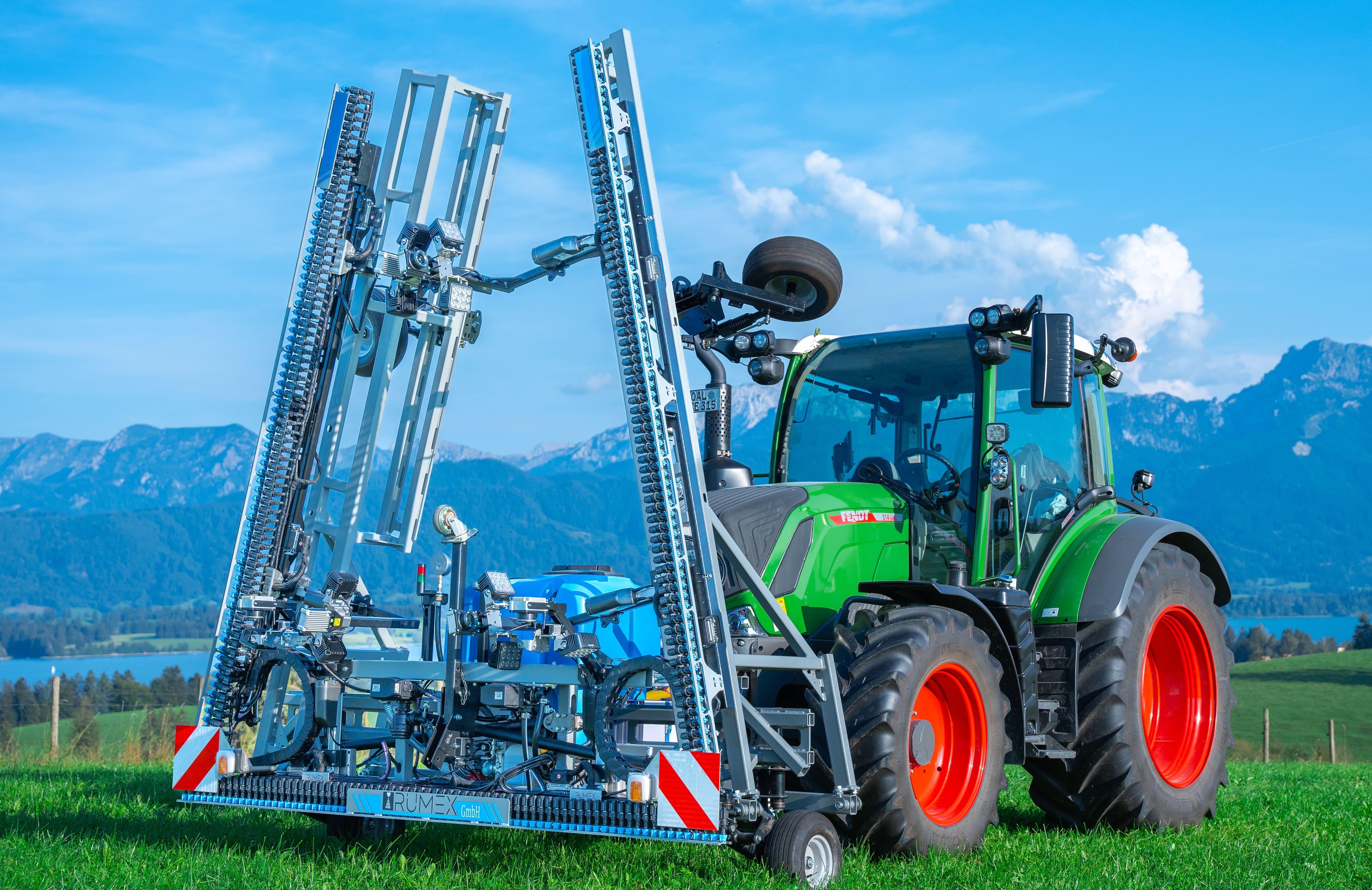

Compact design

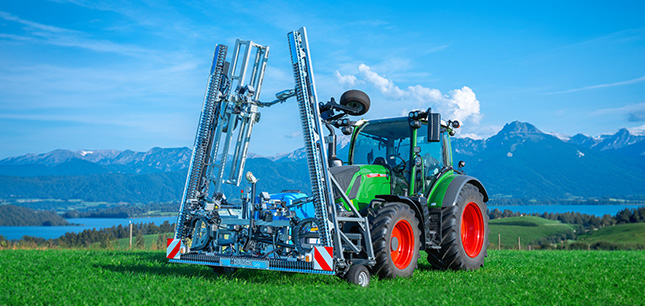

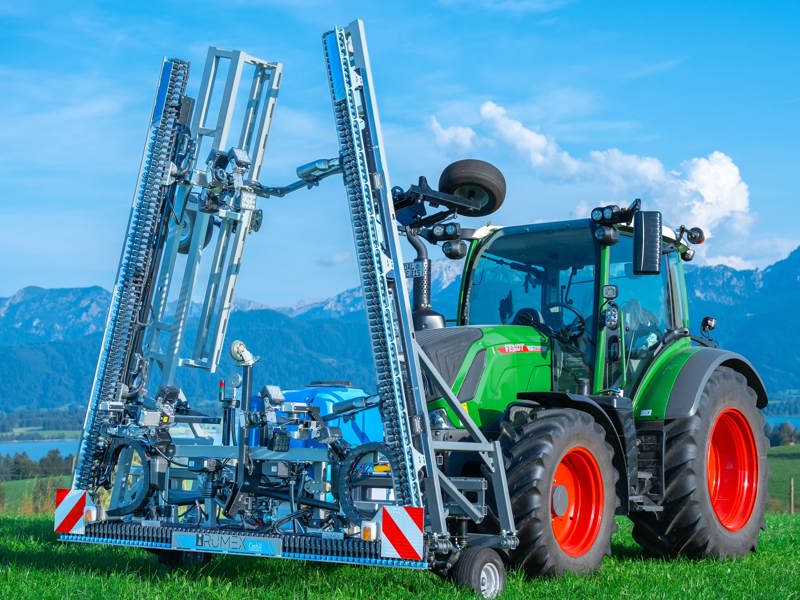

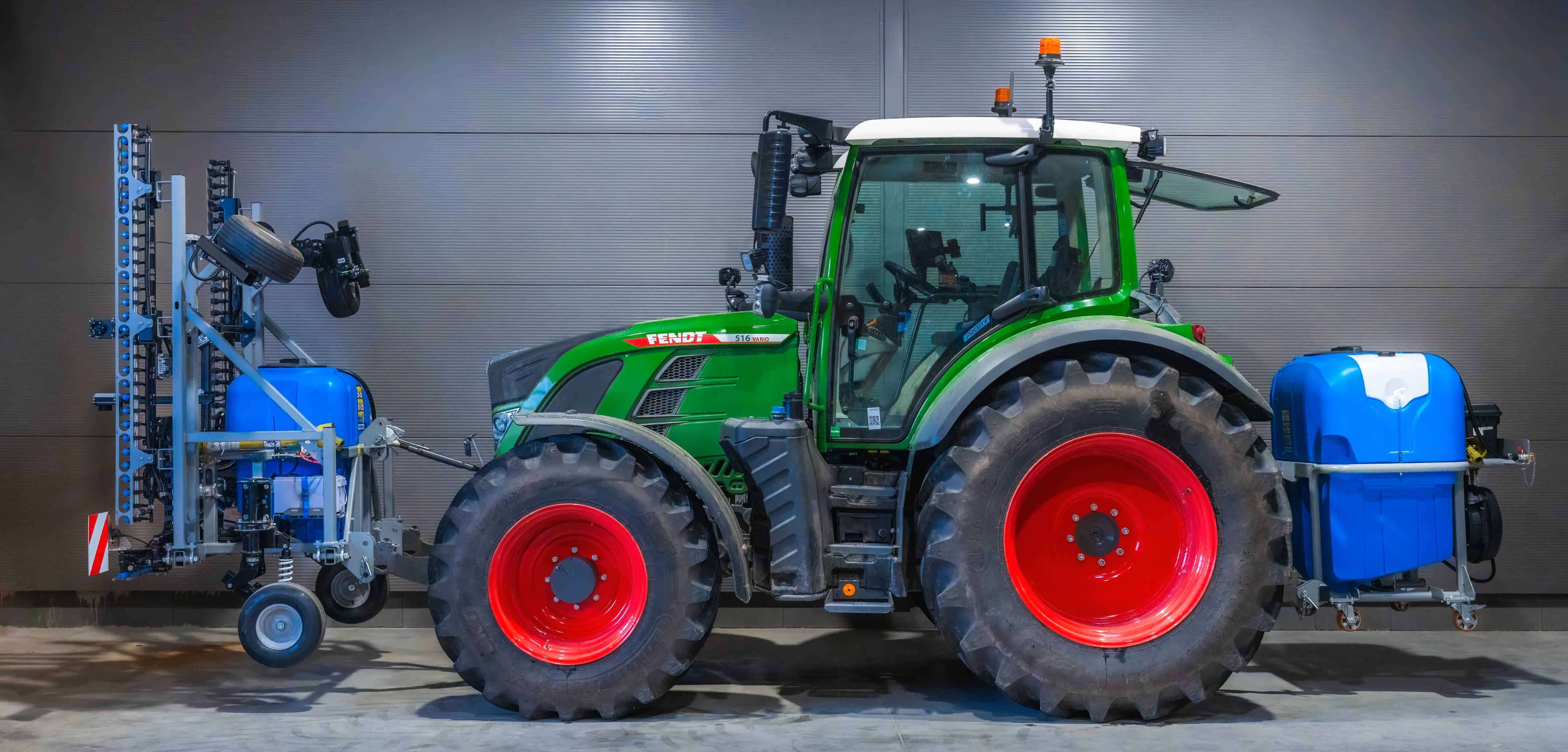

The hydraulic folding of the spray booms transforms the crop protection sprayer into a compact unit measuring 1.60 m x 3.00 m x 3.65 m (L x W x H) and folds to just 3m for road transport. With adjusted gauge wheels and an unfolded support wheel, the folded sprayer can be easily maneuvered manually.
High-end technology
To process our complex neural networks in real time, we have developed the most powerful hardware by far for our sprayer. With 100 TFLOPS (trillion operations per second), our camera delivers performance on an entirely new level while being extremely robust and resistant to external interference.
Lighting

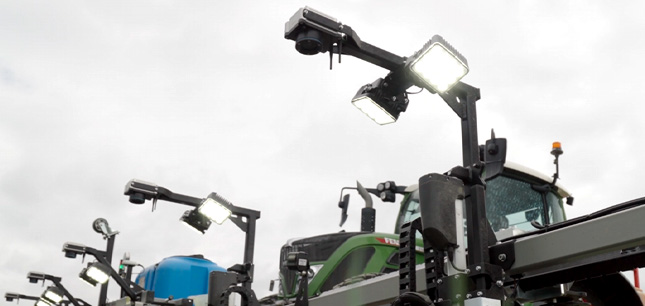

Our cameras are each equipped with two spotlights. This means that the field of view of
each individual camera is fully illuminated. Our spotlights achieve an impressive 43,200 lumens per unit!

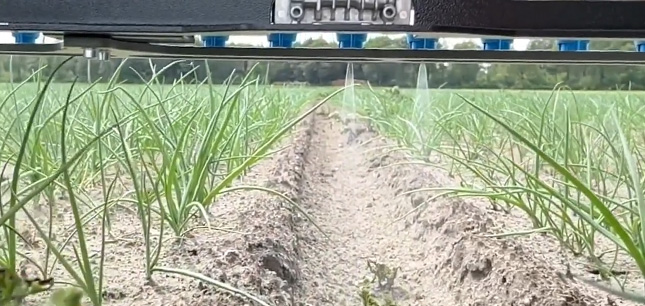

Bespoke Nozzles
The machine is equipped with 222 individually controllable flat-fan nozzles, with each nozzle spaced just 40mm apart. These specifically designed nozzles have a 15 degree angle a flow rate of 200 millimetres at 5 bar. This allows even the smallest weeds to be precisely targeted.
To achieve this precise spraying result, the spray booms are mounted on a floating linkage and equipped with side guide wheels.

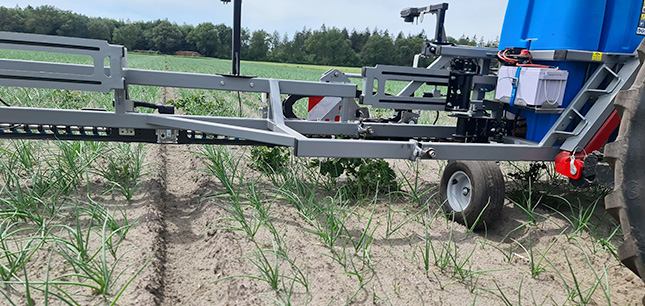

Ground adaptation
To achieve this precise spraying result, the spray booms are mounted in a swinging configuration and equipped with lateral gauge wheels. These ensure that the distance between the nozzles and the target object remains constant, especially on uneven terrain. Additionally, the track of the outer gauge wheels identifies the treated area.
Requirements for the tractor
An integrated power unit reduces the requirements for the tractor to a front hitch and a front PTO shaft. Tractors from the lower power segment can be used to operate the crop protection sprayer.

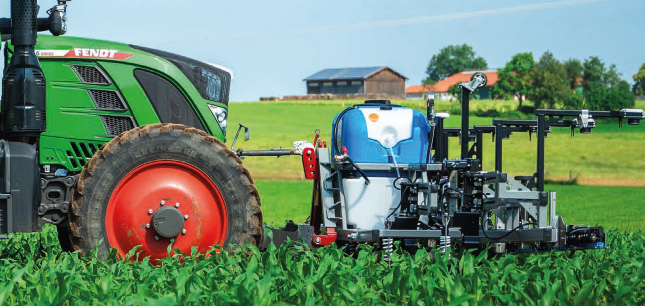

Simple Set-up
An integrated power unit reduces the requirements for the tractor to just a front hitch and a front PTO. With a low weight of approximately 1,200kg when the tank is full, the RXF900 can be operated with tractors from the lower power range.

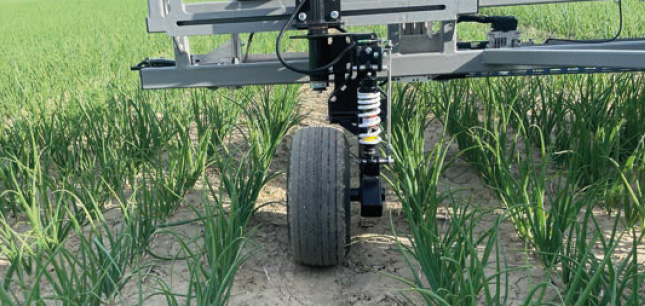

Individual Suspension Wheels
To ensure optimal image recognition even in challenging terrain, all wheels are mounted on spring-mounted individual suspension. This ensures that shocks do not negatively affect the camera image.
Additionally, the entire mechanism is protected by the suspension, as it absorbs impacts, which enhances the durability of the system.
SPOT SPRAYER WITH ARTIFICIAL INTELLIGENCE
Artificial intelligence (AI) enables machines to learn from experience, adapt to new incoming information, and perform tasks that require human-like cognitive abilities.
CONTROLS
If a plant is detected by the image recognition system during operation, the required spray nozzles open as the plant reaches the spray boom to completely cover the dock plant with crop protection chemicals. This process works seamlessly during cornering and at varying speeds. With individual nozzle control, the minimum spray width is 40 mm, allowing even the smallest leaves to be precisely treated.

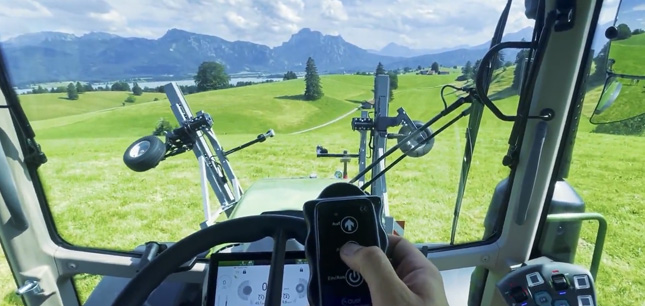

The user interface allows detailed display of driving and spraying data. It also enables the adjustment of spray parameters and access to maintenance functions. Despite its advanced capabilities, operating the crop protection sprayer is very straightforward. Once the PTO shaft is engaged and the machine is positioned on the ground, the image recognition system starts automatically. Whether the image recognition is active is indicated by a signal light that is easily visible from the tractor's cabin.

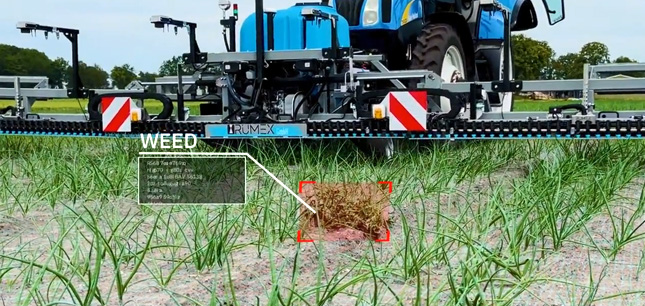

Plant Detection

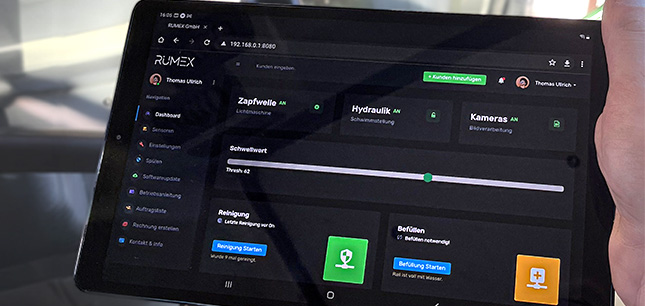

User Interface
Precise spot spraying for increased yield and earlier harvest

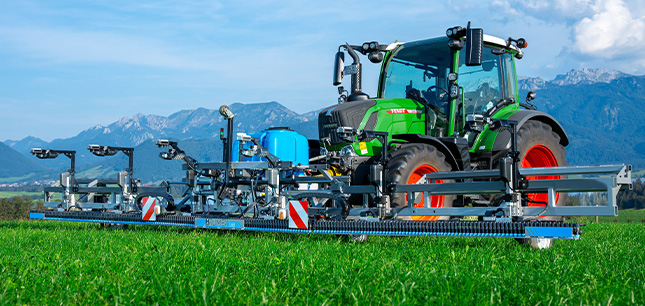

RUMEX SPRAYER MODELS
The RXF900 is a mounted sprayer designed to be attached to the tractor's front hitch. Six horizontally oriented cameras capture the crop stand during operation. This data is processed using intelligent algorithms to reliably identify weeds.
- 6 cameras for crop monitoring
- 222 individually controllable flat-fan nozzles
- Precise ground adaptation and consistent spray height through adjustable spray booms
- Control terminal for capturing and adjusting travel and spraying data, as well as for setting spray parameters
- Electrohydraulic folding and unfolding
- Adjustable chassis for all common bed widths from 1.5 m to 3.0 m
- Electrically adjustable spray booms
- Lighting with 43,200 lumens for the entire field of view per camera
Technical information
| Model | Working Width | Spray Tank | Nozzle Width | Speed | Min HP | Weight |
| RXF900 | 9m | 200L | 40mm | up to 12kph | 50hp | 1000kg |
